Polyhose and Sato Shoji
MANUFACTURING / EQUIPMENT REGISTER

Capacity, down
to the machine.

Explore the equipment used across cutting, forming, machining and finishing. Share a drawing to discuss the right manufacturing route.

Messer fiber laser cutting
Cutting

Messer fiber laser cutting

Equipment
Two machines
Work size
20 m × 3 m
Plasma cutting with bevel
Cutting

Plasma cutting with bevel

Work size
32,000 × 5,100 mm
Bevel angle
Up to 45°

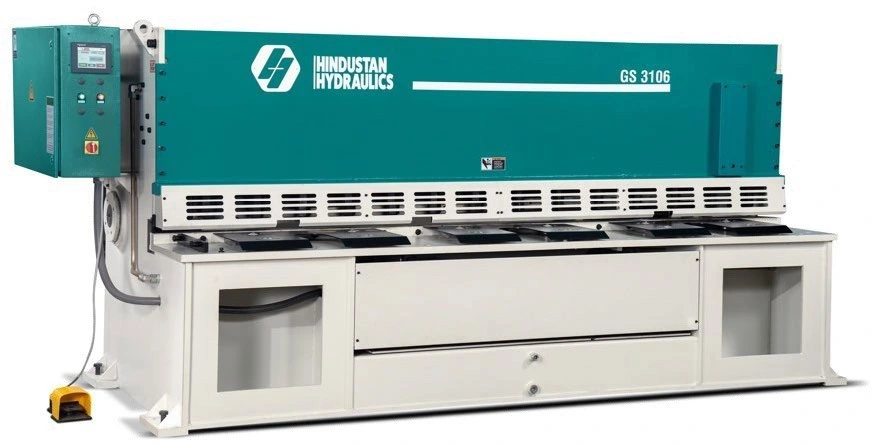

Hindustan hydraulic CNC shearing
Cutting

Hindustan hydraulic CNC shearing

Shearing length
2,000 mm
Thickness capacity
6 mm

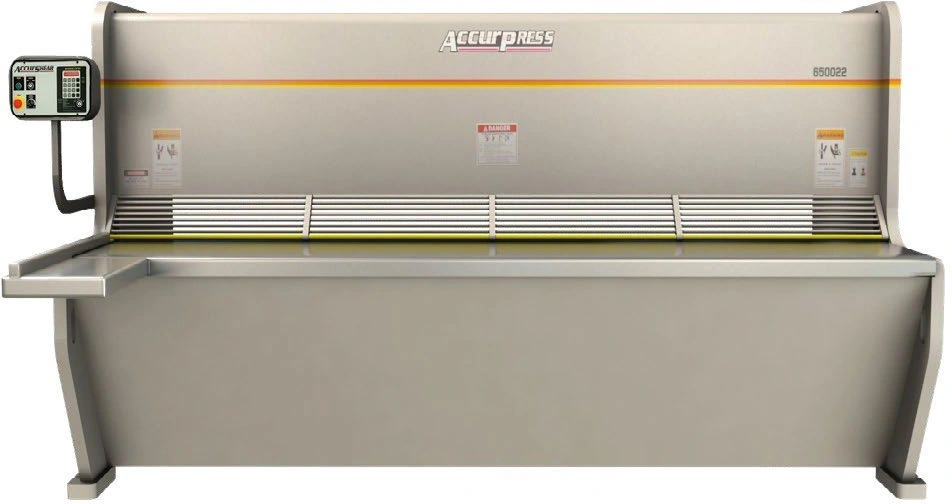

Accurpress CNC shearing
Cutting

Accurpress CNC shearing

Shearing length
6,000 mm
Thickness capacity
16 mm
DAVI rolling machine · 3,100 mm
Forming

DAVI rolling machine · 3,100 mm

Rolling length
3,100 mm
Maximum thickness
35 mm
DAVI rolling machine · 2,000 mm
Forming

DAVI rolling machine · 2,000 mm

Rolling length
2,000 mm
Maximum thickness
20 mm
Beveling machine
Forming

Beveling machine

Beveling angle
0°–60°
Maximum thickness
60 mm
Forming facility
Forming

Forming facility

Equipment shown
Press and forming equipment
Capacity
Confirm for your component
DOOSAN DB 130 horizontal boring
Machining

DOOSAN DB 130 horizontal boring

Bed size
2,000 × 2,200 mm
X / Y / Z stroke
3,000 / 2,000 / 1,600 mm
W-axis stroke
700 mm
Maximum load
15,000 kg
Automatic & manual shot blasting
Finishing

Automatic & manual shot blasting

Published envelope 1
6.9 × 1.5 × 5 m
Published envelope 2
15 × 5.5 × 5 m
Primer booth
Finishing

Primer booth

Length × width × height
15 × 5.5 × 5 m

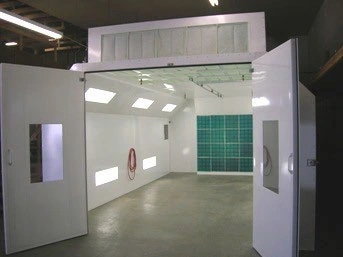

Topcoat / paint booth
Finishing

Topcoat / paint booth

Length × width × height
15 × 6 × 7 m
